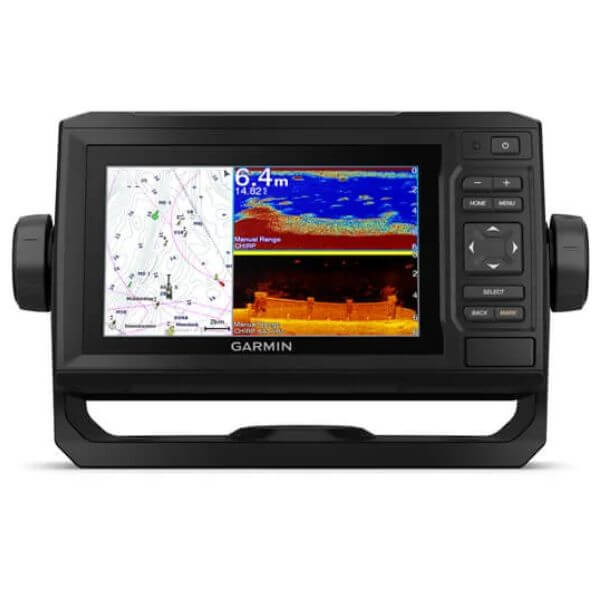

Garmin ECHOMAP UHD 62cv Chartplotter & Fishfinder Without transducer 6″ Display
R11 009,25
JOIN THE CLUB. FIND MORE FISH.
The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
See below your boat in incredible detail with optional transducer
Navigate any waters with optional charts and maps
Manage your marine experience from nearly anywhere
Create your own maps on the fly and tailor them to fit your needs
Take fishing to the next level.
OPTIONAL TRANSDUCER BUNDLE
Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
OPTIONAL CHARTS AND MAPS
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.
QUICKDRAW CONTOURS
Create personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the QuickDraw™ Community on Garmin Connect™.
Boat connected.
NMEA 2000® AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin QuickDraw Community data and more.
Share:
You may also like
General |
|
| DIMENSION | 21.8 x 13.0 x 6.2 cm |
|---|---|
| INPUT | Keyed |
| DISPLAY SIZE | 13.7 x 7.7 cm; 15.2 cm (6.2″) diagonal |
| DISPLAY RESOLUTION | 480 x 800 pixels |
| DISPLAY TYPE | WVGA display |
| WEIGHT | 0.7 kg |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & memory |
|
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 5 Hz |
| NMEA 2000® COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps |
|
| (SOUNDER) TIDE TABLES | |
|---|---|
Optional Map Support |
|
| BLUECHART G3 | |
|---|---|
| BLUECHART G3 VISION | |
| LAKEVÜ G3 | |
| LAKEVÜ G3 ULTRA | |
| (SOUNDER) TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter features |
|
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | |
| SAILING FEATURES | |
Sonar features & specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
Connections |
|
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| VIDEO INPUT PORTS | None |
| VIDEO OUTPUT PORTS | None |
| GARMIN MARINE NETWORK PORTS | None |
| 4-PIN TRANSDUCER PORTS | |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 0.7 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.25 A |
| MAXIMUM POWER USAGE AT 10 VDC | 12W |
