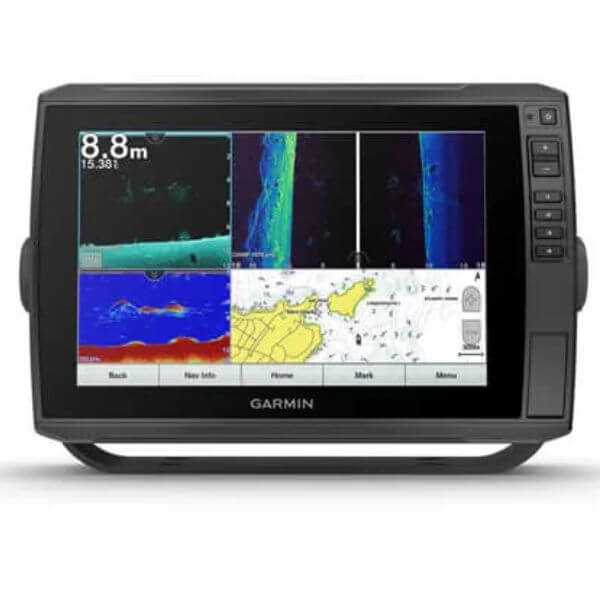

Garmin ECHOMAP™ Ultra 102sv Chartplotter With GT56UHD-TM Transducer 10″ Display

General
DIMENSION	11.6 x 7.7 x 3.9 (29.5 x 19.5 x 9.8 cm)
TOUCHSCREEN
INPUT	Touchscreen with Keyed Assist
DISPLAY SIZE	8.5” x  5.4”; 10 diagonal  (21.7 cm x 13.6 cm; 25.4 cm diagonal)
DISPLAY RESOLUTION	1280 x 800 pixels
DISPLAY TYPE	WXGA display
WEIGHT	4.0 lbs (1.8 kg)
WATER RATING	IPX7
MOUNTING OPTIONS	Bail or flush

Maps & memory
ACCEPTS DATA CARDS	2 microSD™ cards
WAYPOINTS	5,000
TRACK POINTS	50,000
TRACKS	50 saved tracks
NAVIGATION ROUTES	100

Sensors
HAS BUILT-IN RECEIVER
RECEIVER	10 Hz
NMEA 2000® COMPATIBLE
NMEA 0183 COMPATIBLE
GPS
SUPPORTS WAAS

Built-in Maps
(SOUNDER) TIDE TABLES

Optional Map Support
BLUECHART G3
BLUECHART G3 VISION
LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
(SOUNDER) TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS

Chartplotter features
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE
SAILING FEATURES

Sonar features & specifications
DISPLAYS SONAR
POWER OUTPUT	600 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ	built-in 260/455/800/1000/1200 kHz
(SOUNDER) SIDEVÜ	built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
LIVESCOPE

Connections
NMEA 2000 PORTS	1
CONNECTIONS NMEA0183 INPUT PORTS	1
NMEA 0183 INPUT (TX) PORTS	1
GARMIN MARINE NETWORK PORTS	2 (large connector)
12-PIN TRANSDUCER PORTS	1 LVS sonar; 1 scanning sonar

Electrical Features
POWER INPUT	9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC	2.8 A
MAXIMUM CURRENT DRAW AT 12 VDC	3.0 A
MAXIMUM POWER USAGE AT 10 VDC	24.4W
