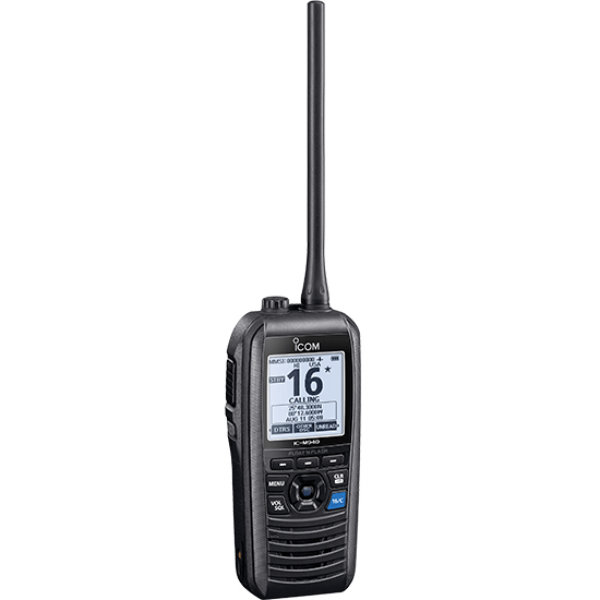

Icom M94D VHF Handheld AIS Handheld for the Serious Boater – Bring it On – South Africa's Leading Marine Radio Online Store

Specifications

General
Frequency Range Tx Rx DSC AIS (Rx)	156.025–157.425 MHz 156.050–163.275 MHz 156.525 MHz 162.025 MHz
Usable channel groups	INT, USA, CAN, WX channels
Type of emission	16K0G3E (FM), 16KOG2B (DSC), 16K0GXW (AIS)
Current drain (at 7.4V DC) Tx (6W / 1W output) Rx (Inter SP/Exter SP Max. audio)	1500 mA / 700 mA (approx.) 700 mA / 350 mA (approx.)
Operating temperature range	-20°C to +60°C; -4°F to +140°F
Antenna Impedance	50Ω
Dimensions (W×H×D) (Projections not included)	60.9 × 145.8 × 43.8 mm; 2.4 × 5.7 × 1.7 in
Weight (approx.)	357 g; 12.6 oz (With BP-306, antenna, MB-133)

Transmitter
Output power (Hi/Low)	6W / 1W
Max. frequency deviation	±5 kHz
Frequency stability	±10ppm
Spurious emissions	–68 dBc typ.

Receiver
Sensitivity (at 12 dB SINAD) DSC receiver (at 1% BER) AIS receiver (at 20% PER)	0.25 µV typical 0.56 µV emf typical –107 dBm
Squelch sensitivity (Threshold)	0.25 µV typ.
Adjacent Channel Selectivity DSC receiver (at 1% BER)	70 dB typical 73 dBμ emf typical
Spurious response DSC receiver (at 1% BER)	70 dB typical 73 dBμ emf typical
Intermodulation DSC receiver (at 1% BER)	70 dB typical 68 dBμ emf typical
Hum and noise ratio	40 dB typical
Audio output power (at 10% distortion) Internal speaker External speaker	1500 mW typical (8Ω load) 350 mW typical (8Ω load)

Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Standard	MIL 810 G
Standard	Method	Proc
Low Pressure	500.5	I, II
High Temp.	501.5	I, II
Low Temp.	502.5	I, II
Temp. Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standard
Water	IPX7 (Submersible protection)

Supplied Accessories

Antenna, FA-SC59V
AC adapter, BC-123SA
Battery charger, BC-251
Battery pack, BP-306
Cigarette lighter cable, CP-25H
Belt clip, MB-133
Hand strap

Icom’s Class-H DSC VHF transceiver, the M94D is the world’s first handheld to possess the power of AIS. A class-leading 1500 mW speaker and ocean-conscious features, the M94D is perfect for small boats and leisure craft looking to stay safe and informed on the ocean.

Output Power:		6W
Battery Life:		2400 mAh Li-ion battery, up to 10 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90
Waterproof Rating:		IPX7
GPS:		Built-in
Floats:		Yes

AIS Receiver with DSC

A combination of the Automatic Identification System (AIS) and Distress Signal Calling (DSC) provides users with peace of mind when out on the open sea. With the AIS target call function, users can set up DSC individual calls. Easy access to distress call button on rear panel button.

Simplified Navigation System

Access vessel traffic information and plot up to 50 waypoints for fishing spots or Man-Overboard (MOB) waypoints. The M94D’s back-lit screen is dimmable for easy readability under any lighting condition. The large screen allows for easy-to-read icons and text.

Ocean-Ready Features

Ready for the open seas. The M94D’s water-resistance measures make it ready to operate under any weather condition.

Float’n Flash
The M94D falls into water, the radio floats and automatically flashes, even when it is off. The LCD screen flashes to help show the radio’s position to easily retrieve.

AquaQuake™
If the M94D decides to take a swim, the AquaQuake draining function removes water from the grill by vibrating at a particular frequency, preventing audio degradation.

Additional Features

Active Noise Cancelling technology
Weather channel
Dual watch and Tri-watch functions
Favourite channel function
Supports 4-digit channels
